Stainless Steel Cranked Pull Handles
| Residential/Commerical | Residential/Commerical |
|---|---|
| Suitable Door Thickness | 35-54mm |
| Diameter | 32mm, Pillar 25mm |
| Bar Diameter | 32mm |
| Projection | 115mm |
| Handle Length | 600mm |
| Fixings Included | M8 Fixings |
| PVD Finish | No |
| Overall Size | 600 x 32mm |
| Internal/External | Internal / External |
| Material Grade | 304g Stainless Steel |
| Range | Stainless Steel |
| Material | Stainless Steel |
| Finish | Satin Stainless Steel |
| Corrosion Grade | Grade 4 |
| Fire Rating | FD30/60 |
| Size | 600x32mm |
Description

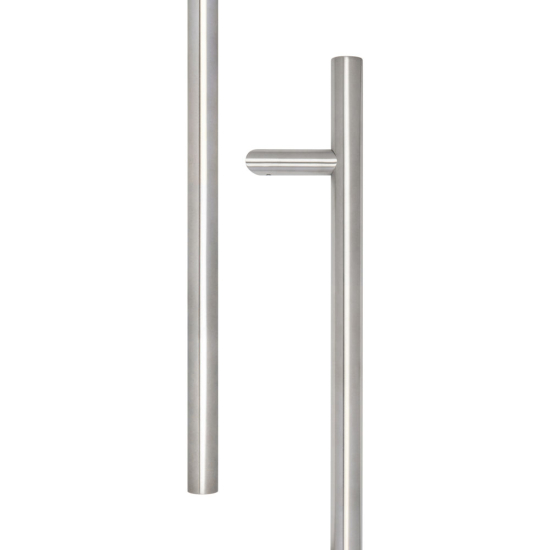

The Frelan JSS519A cranked pull handle features a robust Ø32mm tubular design with 400mm centres and a 600mm overall length. Its cranked fixing ensures extra clearance from the door surface, enhancing accessibility. Made from Grade 304 stainless steel with FD30/60 fire rating, it is built for demanding commercial use.
KEY FEATURES
Material Grade: 304 Stainless Steel
Finish: Satin Stainless Steel
Fixing: M8 Bolt Through
Fire Rating: FD30/60
Corrosion Grade: 4
Use: Internal / External
Suitable Door Thickness: 35–54mm

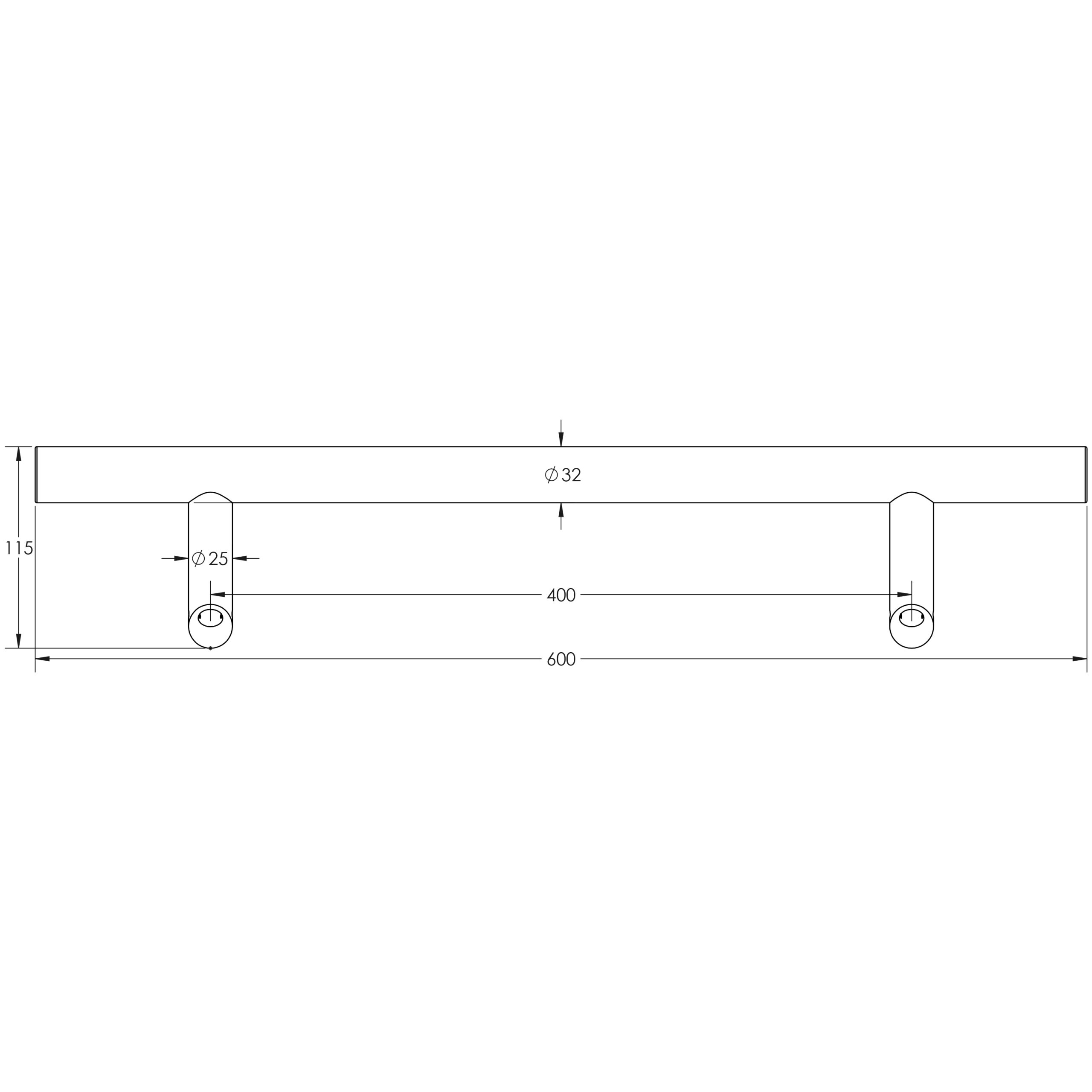

DIMENSIONS
Diameter: Ø32mm
Pillar Diameter: Ø25mm
Centres: 400mm
Length: 600mm
Projection: 115mm
