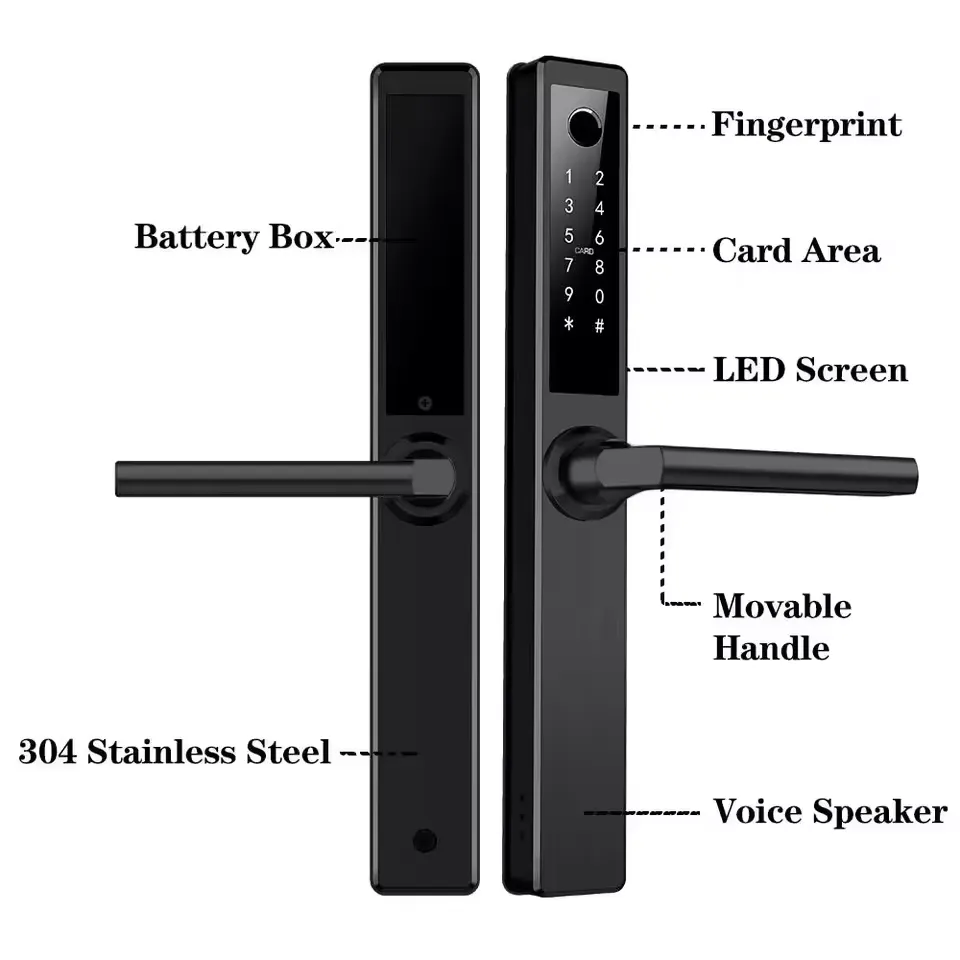

EA 230 Slim Line Smart Digital Lock for UPVC, Composite, Wooden & Aluminium Doors
$282.28
Description
| Model | EA230 |
| Finish | Satin Stainless Steel |
| Door Type | Wooden Door/Security Door/Composite Door/UPVC Doors |
| Certification | CE, ROSH, FFC |
| Waterproof / Fireproof | Yes |
| Suitable for Mortise Sash Lock | Yes |
| Lock Dimension | 310mm(H) 39mm(W) 23mm(T) |
| Material | 304 Stainless Steel |
| Battery | 12 Months Battery Life , USB for Emergency Power |
| Working Voltage | 6V (4 x AA Batteries) |
| Working Temperature | -25°~ 60° |
| Working Humidity | 0% – 95% |
| Door Thickness | 35 – 65mm |
| Test | 250K Cycle Times; 200 Hours Salt-spray |
| User Capacity | Fingerprint: 200, Password: 150, Card: 200 |
| Unlocking Way | Bluetooth, Fingerprint, PIN Code, RFID Card, Mechanical Key, Keyless Fob |
| Wireless Network Protocol | TTlock BLE, TTIock WIFI/BLE |
| Application | Residential, Office, Airbnb, Condo & Apartment Projects |
Technical Details

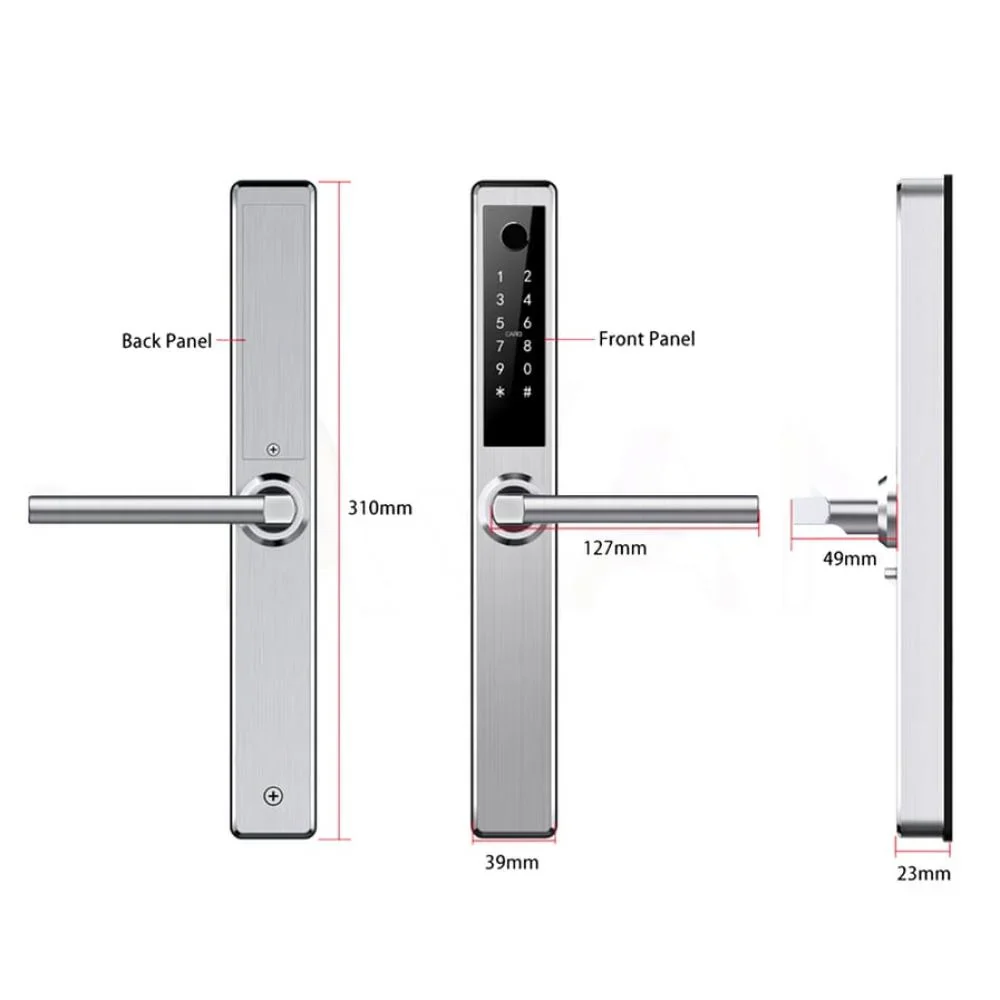

Specifications of the unit including the dimensions of the unit and the parts you will receive. This drawing is the property of Euro Art UK Limited, all design rights reserved.
For UPVC & Composite Doors this smart lock does works with 90% of the Multipoint locks. If it does not then you might have to change your Multipoint Lock if it is an old version but this digital lock does work on most of them without the need to changing it.
Certifications & Compliance:
-
CE & UKCA Conformity – RED Directive (2014/53/EU)
-
EN IEC 62368-1:2020 Safety Certified
-
EN 301 489-1 / EN 301 489-17 EMC Compliant
-
EN 300 328 Bluetooth Radio Standard
-
EN 62479 & EN 50663 RF Exposure Safety
-
IP55 Dust & Water Resistance (IEC 60529)
